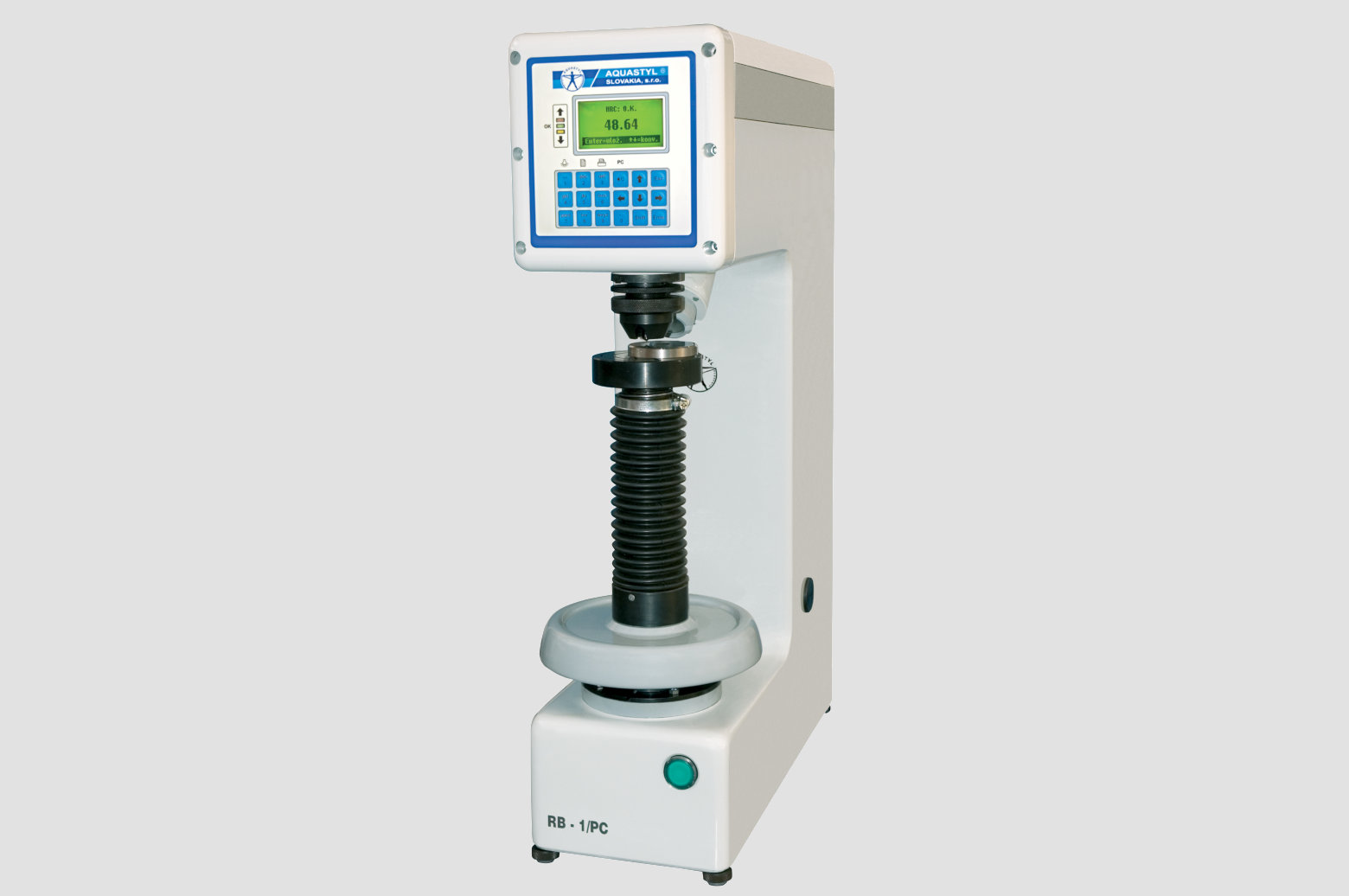

Rockwell RB-1/PC
Digital hardness tester for testing hardness of metals with the Rockwell method (according to EN ISO 6508) and partially the Brinell method (according to EN ISO 6506) for a ball with diameter ø 2,5 mm.
The control electronics makes it possible
- to determine the impression body, main load and weight in relation to the chosen testing method
- to determine the measuring time
- to set the date and time
- to set the communication language: English, German, Slovak, Czech
- to make corrections in case of uneven surfaces
- to convert into other scales according to DIN 50 150
- to determine the impression depth and material strength
- to transfer data to PC
- to print protocols in chosen language
- to control the sensor adjustments
- statistical processing of results
| Unit | Impression body | Load | Hardness range | Application |
|---|---|---|---|---|
| C HRC |
Diamon cone 120° |
1470 N | 20 - 70 HRC |
Measuring of hardened and high-quality steels |
| B HRBW |
Ball ø 1/16" |
980 N | 30 - 100 HRBW |
Measuring of steels with strength up to 800 N/mm2 |
| A HRA |
Diamon cone 120° |
580 N | 60 - 90 HRA |
Measuring of hardness of extra hard thin layers |
| Unit | Impression body | Load | Hardness range | Application |
|---|---|---|---|---|
| HBW 2.5/31.25 |
Ball ø 2.5 mm |
306 N | up to 450 HBW | Light metal alloys |
| HBW 2.5/62.5 |
Ball ø 2.5 mm |
612 N | up to 450 HBW | Non-ferrous metals and their alloys |
| HBW 2.5/187.5 |
Ball ø 2.5 mm |
1838 N | up to 450 HBW | For steel and cast iron |
Technical data
Measuring parameters
- max. height of measured component: 130 mm
Size, weight
- set height: 690 mm
- base l x w: 450 mm x 180 mm
- weight: 80 kg
