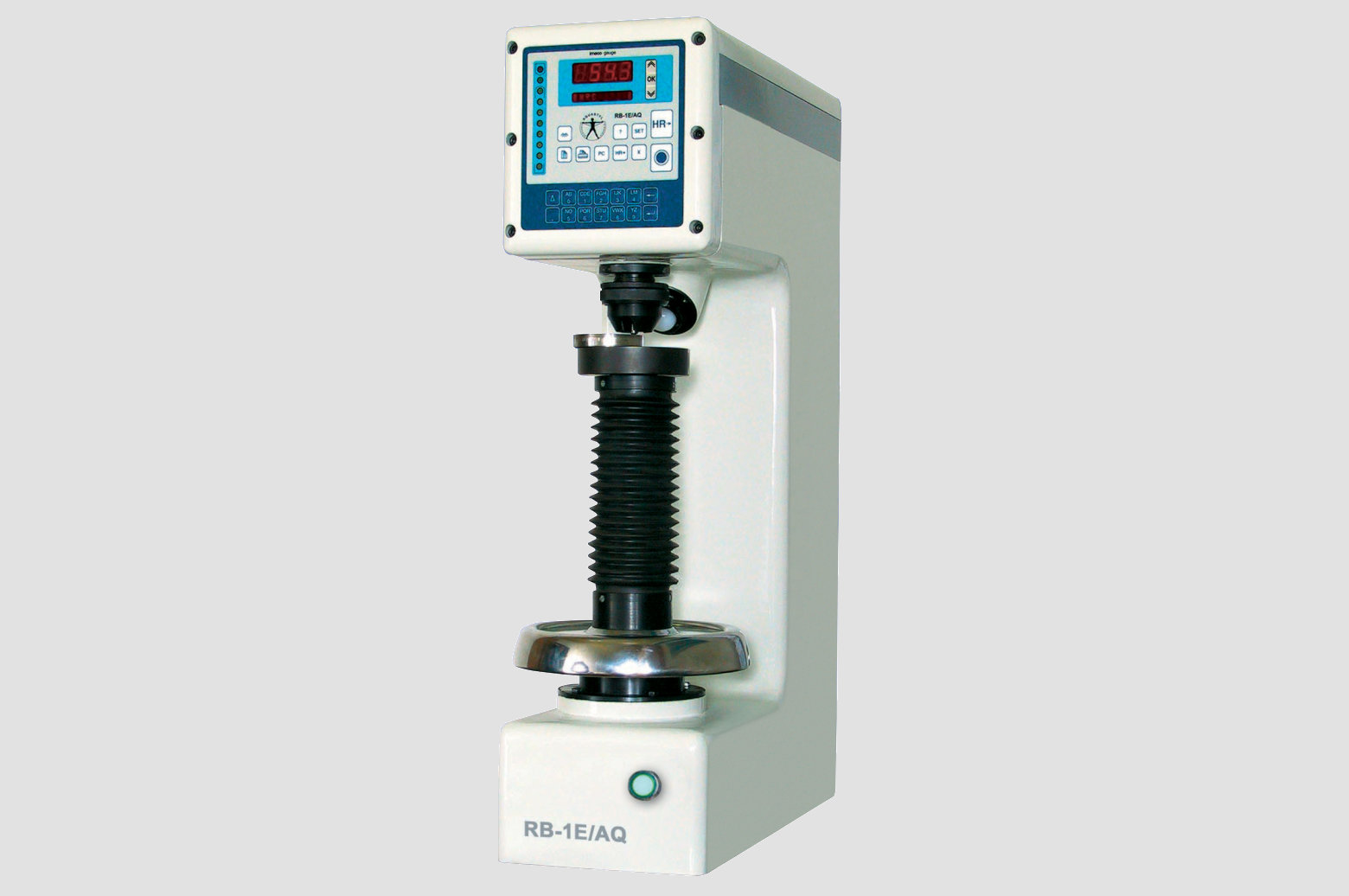

Rockwell RB-1E/AQ
Digital hardness tester for testing hardness of metals with the Rockwell method - C, B, A, D, F (according to EN ISO 6508) and the Brinell method (according to EN ISO 6506) for a ball with diameter 2.5 mm.
The control electronics makes it possible
- to determine the impression body, main load and weight
- to determine the measuring time
- to set the date and time
- to make corrections in case of uneven surfaces
- to convert into other scales according to DIN 50 150
- to determine the impression depth and strength
- to transfer data to PC
- to print protocols on PC or serial printer
- to control the sensor adjustment
| Unit | Impression body | Load | Hardness range | Application |
|---|---|---|---|---|
| C HRC |
Diamon cone 120° |
1470 N | 20 - 67 HRC |
Measuring of hardened and high-quality steels |
| B HRBW |
Ball ø 1/16" |
980 N | 30 - 100 HRBW |
Measuring of steels with strength up to 800 N/mm2 |
| A HRA |
Diamon cone 120° |
580 N | 55 - 90 HRA |
Measuring of hardness of extra hard thin layers |
| Unit | Impression body | Load | Hardness range | Application |
|---|---|---|---|---|
| HBW 2.5/31.25 |
Ball ø 2.5 mm |
306 N | up to 450 HBW | Light metal alloys |
| HBW 2.5/62.5 |
Ball ø 2.5 mm |
612 N | up to 450 HBW | Non-ferrous metals and their alloys |
| HBW 2.5/187.5 |
Ball ø 2.5 mm |
1838 N | up to 450 HBW | For steel and cast iron |
Technical data
Measuring parameters
- max. height of measured component: 130 mm
Size, weight
- set height: 690 mm
- base l x w: 450 mm x 180 mm
- weight: 80 kg
Basic outfit
- 1 pcs impression ball ROCKWELL
- 1 pcs ball holder ROCKWELL-B
- 1 pcs ball holder BRINELL
- 1 pcs ball with diameter 1/16"
- 1 pcs ball with diameter 2.5 mm
- 1 pcs round table with diameter 95 mm
- 1 pcs prism table
- 1 pcs hardness testing plates for HRC scale
- 1 pcs hardness testing plate for HRBW scale
- 1 pcs hardness testing plate for HRA scale
